What Is a GW GeWalt Automatic Sliding Door?
Our automatic sliding door systems are built for hospitals, malls, offices and premium residences where downtime is not an option and a jammed entrance costs real money. We have been supplying and installing them in Malaysia since 1997.
A microwave motion sensor detects an approaching person and signals the microprocessor controller. The controller drives the tooth belt, the leaves glide along the guide rail on hanger brackets, and an infrared safety beam holds the door open while anyone stands in the threshold. Anti-clamp technology reverses the leaf the moment it meets resistance.
Type of Automatic Sliding Door Systems
HH150 automatic sliding door system and mechanism

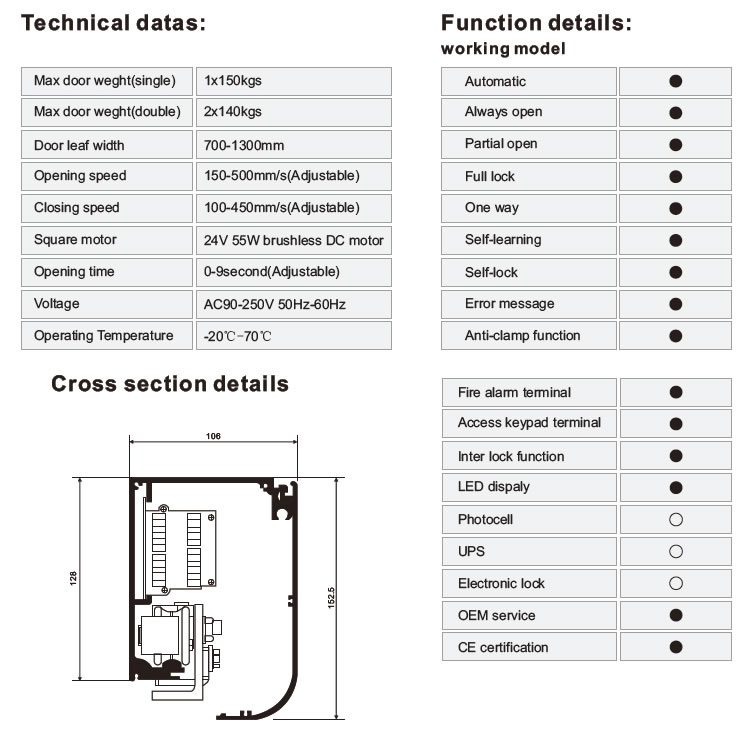

The HH150 is our pioneering worm-gear motor mechanism. Its integrated functional technology makes it an exceptionally stable, strong, silent operator, and it contributes an excellent level of safety. It runs a 24V 55W brushless DC motor and carries a 150kg single leaf, or two leaves of 140kg each, across openings 700 to 1300mm wide per leaf.
4S principles auto sliding door: stable, safe, silent and strong

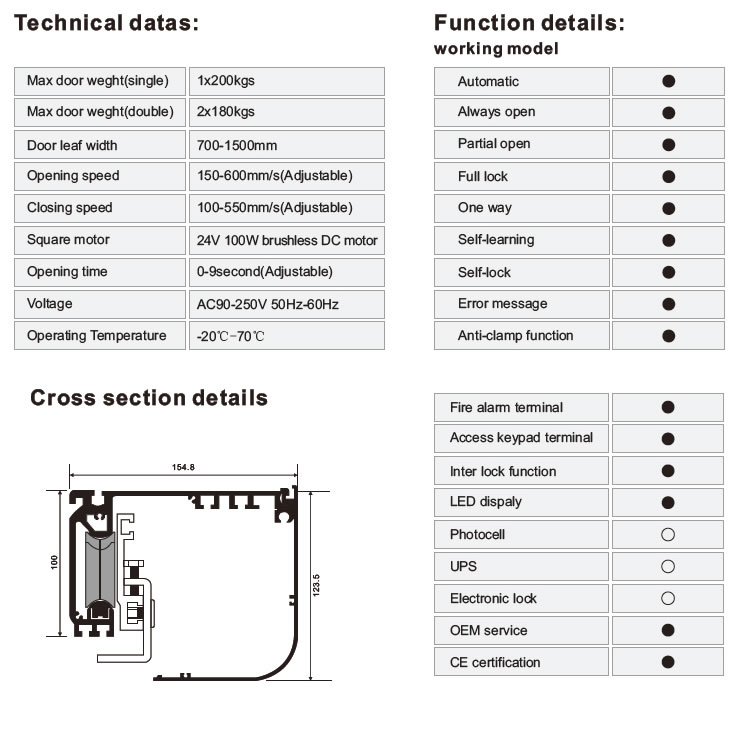

The 4S mechanism is the heavier-duty option, running a 24V 100W brushless DC motor rated to 200kg on a single leaf and 700 to 1500mm leaf widths.
- Stable: three wheels and two tracks by design.
- Safe: more sensitive anti-clamp function.
- Silent: rubber design, less noise.
- Strong: 100W BLDC motor with 200kg per leaf lifting capacity.
- Advanced: LED display, working-time counting, timer function, chemist’s shop function and PC control.
Semi-auto sliding door
The GeWalt semi-automatic sliding door opening mechanism is a good solution for house doors and commercial openings, and it uses the latest technology to reduce noise. It comes with an aluminium-frame door and laminated glass at 4ft x 8ft, cover included, from RM1,700++ supply and install.
Telescopic sliding door
The GeWalt telescopic sliding door portfolio solves two different situations: a narrow entrance that needs a wide opening space, and a large door entrance. Two sliding leaves fit into one door space, so the door gives large passage widths within a low overall system width while keeping the required safety clearances. Read more about our telescopic sliding doors.
Where These Doors Earn Their Keep
High-traffic retail entrances, hospital corridors, government buildings and office lobbies are our most common installations. As a certified installer for Malaysian government and high-security commercial buildings, we also specify breakout hardware and compliance details where escape routes are involved. For a worked example, read how we upgraded a failing high-traffic commercial entrance to a 4S system.
We supply the whole entrance, not just the operator. That includes the automatic swing door series and accessories and the door closers that go with them.
