What Is an Automatic Swing Door Operator?
An automatic swing door uses a motorised operator mounted above the frame to open and close a hinged leaf. Our systems use self-adapting technology control: the operator continuously reads the door’s weight and any wind load, then delivers exactly the power needed to keep a constant, predictable speed.
That constant-speed operation matters for safety. Visitors, patients and staff get the same gentle motion whether the door is a light aluminium leaf or a heavy tempered glass panel, and the backcheck adjustment cushions the leaf if someone pushes it open hard.
Where Swing Doors Fit Best
Swing operators suit offices, clinics, retail entrances and accessibility upgrades where a swing action fits the architecture better than a slide. They need no side wall space for a parking panel, which makes them the practical pick for corridors and compact frontages.
Activation is flexible: microwave motion sensors for hands-free entry, push-button or wave switches for controlled access, and hold-open mode for deliveries. All of it is installed and maintained by the same GW GeWalt team behind our hospital and government sliding door projects, with after-sales support across the Klang Valley.

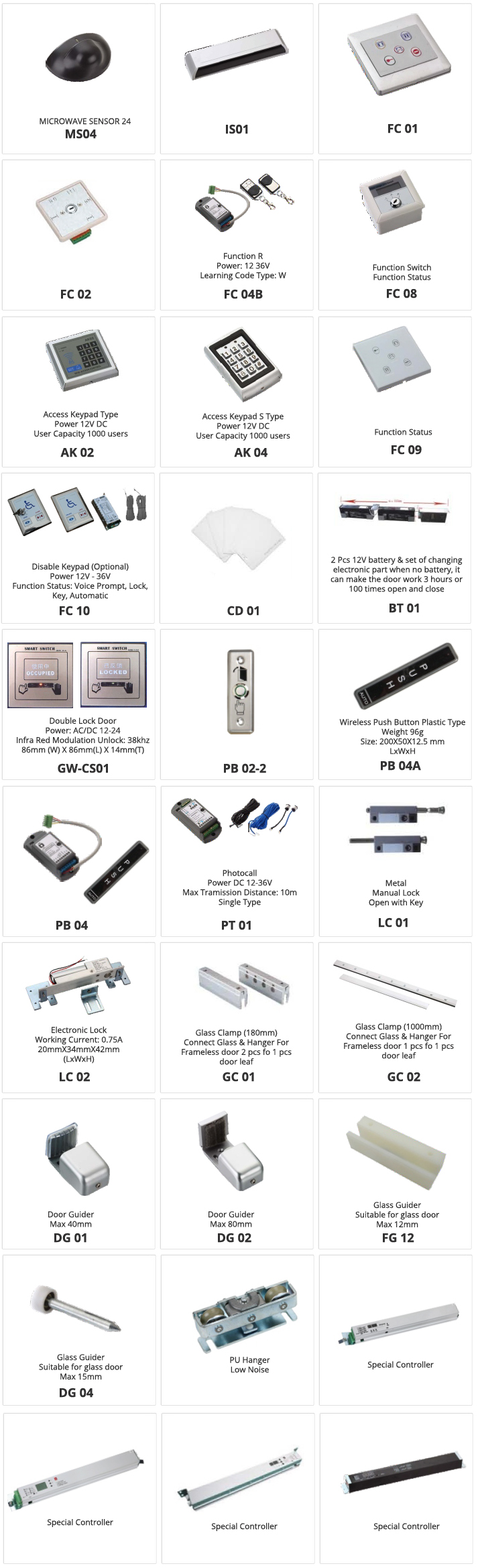

Accessories
The swing door series carries its own accessory range, so activation, access control and glass fixing all come from one supplier.
Activation and sensing
- MS04 microwave sensor 24
- PT01 photocell, DC 12-36V, 10m maximum transmission, single type
- PB02-2, PB04 push buttons; PB04A wireless push button, plastic, 200 x 50 x 12.5mm
Control and access
- FC01, FC02, FC08, FC09 function switches and status displays
- FC04B remote function unit, 12-36V, W-type learning code
- FC10 disabled-access keypad, 12-24V, with voice prompt, lock, key and automatic status
- AK02 and AK04 access keypads, 12V DC, 1,000-user capacity
- CD01 access cards
- GW-CS01 double lock door smart switch, AC/DC 12-24, infrared modulation unlock at 38kHz, 86 x 86 x 14mm
Locking and power backup
- LC01 metal manual lock, opens with key
- LC02 electronic lock, 0.75A working current, 20 x 34 x 42mm
- IS01 interlock strip
- BT01 battery backup: two 12V batteries plus a changeover set, keeping the door working for three hours or roughly 100 open-close cycles without mains power
Glass fixing and guides
- GC01 glass clamp, 180mm, two per leaf for frameless doors
- GC02 glass clamp, 1000mm, one per leaf for frameless doors
- DG01 door guider, 40mm maximum; DG02 door guider, 80mm maximum
- FG12 glass guider for glass up to 12mm; DG04 glass guider for glass up to 15mm
- PU hanger, low noise
If you are replacing a single part rather than a whole system, we stock these individually. Send the part code or a photo of what failed.
