Looking for an automatic door closer in Malaysia? GeWalt supplies a wide range of door closers, with the adjustment functions that let a closer be tuned to the door it is fitted to rather than merely bolted on.
Our unique benefits

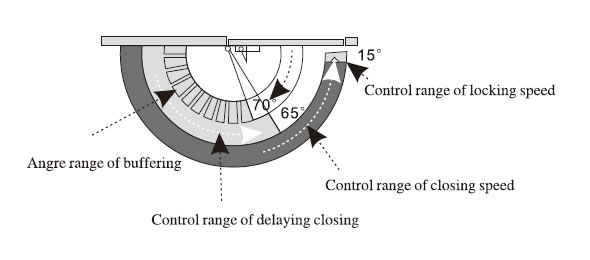

Range of dual-speed control
Dual-speed control changes how the door closes at different points in its arc. Closing speed covers 180 to 15 degrees and locking speed covers 15 to 0 degrees, so the locking speed drops as soon as the closer is set up. The result is a door that travels at a sensible pace and then latches quietly.
Stopping function at 90 degrees
The stopping function can be regulated and held at 90 degrees for superior performance, which is what you want on a door that needs to stay open while goods or people move through.
Closing and locking speed
The speed can be regulated further at various degrees if needed. It adjusts down to 3 seconds while still holding the closing speed to over 40 seconds at the other end of the range.
Buffer function
At roughly 65 degrees of opening, a damping force engages to protect whatever is around the door. That force is not rigid; it can be adjusted to preference.
Door closer with disabled-friendly functions
Time-delay closing
The door can be engineered to hold for up to 20 seconds within a set range, between 180 and 65 degrees. It is the difference between an accessible entrance and one that closes on someone using a walking frame.
Door closing force
Closing force can be adjusted by the user, and adjusted again in relation to the door’s overall size. That adjustability is the point: it keeps the door convenient to operate across every scenario the entrance sees, and it adds control to the process rather than leaving one setting to cover everything.
Types of door closer installation
Hidden door closer

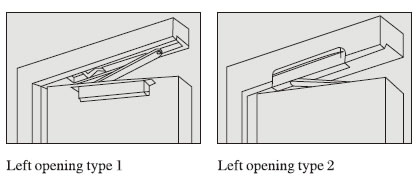

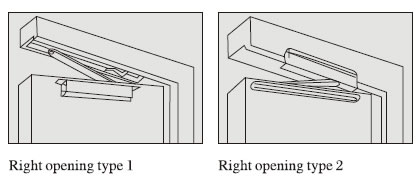

The closer is not visible from outside the door. There are four designs:
- Left opening type 1
- Left opening type 2
- Right opening type 1
- Right opening type 2

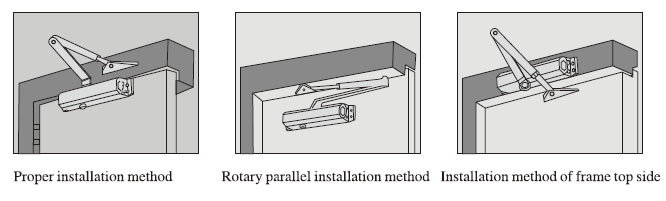

Open door closer
A surface closer can be installed three ways:
- Proper installation method
- Rotary parallel installation method
- Frame top-side installation method
Door closer colour
Closers are available in a range of standard finishes, so the closer matches the rest of the ironmongery on the door rather than announcing itself.
Hydraulic door closer hinge
We also supply door closer hinges to match your chosen closer, used on bathrooms, fire doors, security doors and more. The two popular models are the GW-M2-NA and the GW-M2-B.
Features
- Anti-pinch function: closing speed reduces when force is applied
- Three adjustable speed settings
- Closing force adjusts to the door weight
- Working temperature -30°C to 60°C
Potential issues
- The anti-pinch function works by impeding hydraulic flow control
- Lifespan is reduced to around 200,000 cycles
- Load capacity is affected
- Oil leakage is a known failure mode
How to choose the right door closer hinge
Door weight and size decide how many closer hinges you need.
Full hinge specifications, including the floor spring range, are on our glass door hinges page. The closer here is the surface or hidden unit; the hinge is what the door actually turns on.
