Same Goal, Different Geometry

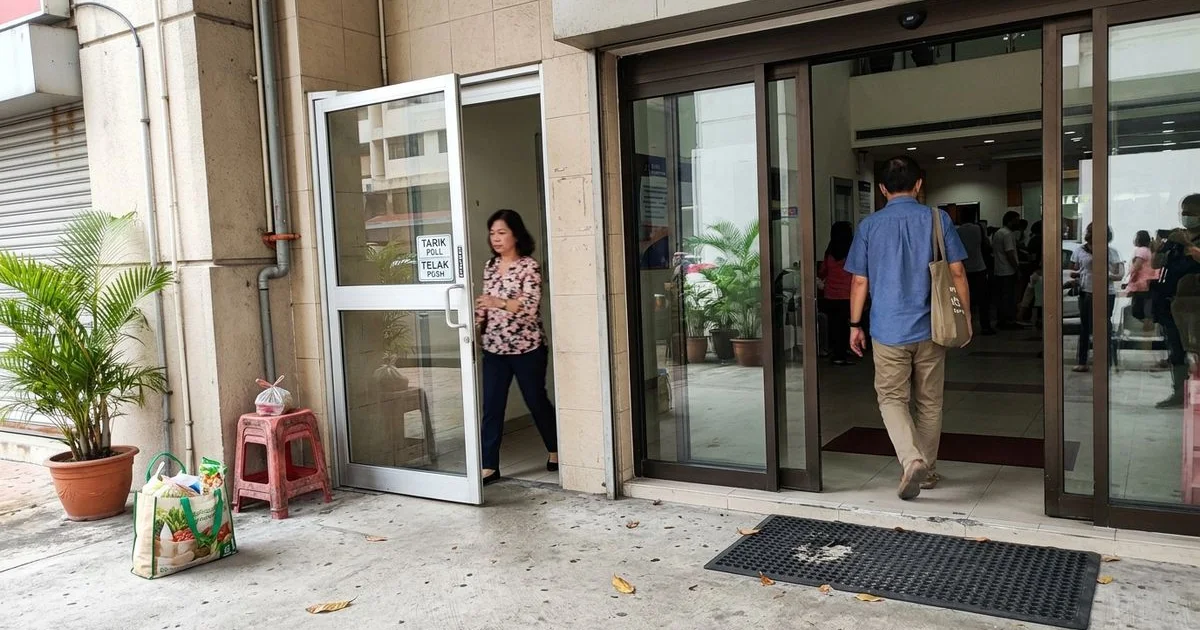

Automatic swing doors and automatic sliding doors both give visitors hands-free entry. The right choice is rarely about preference — it is about which door your building’s geometry and traffic actually allow.

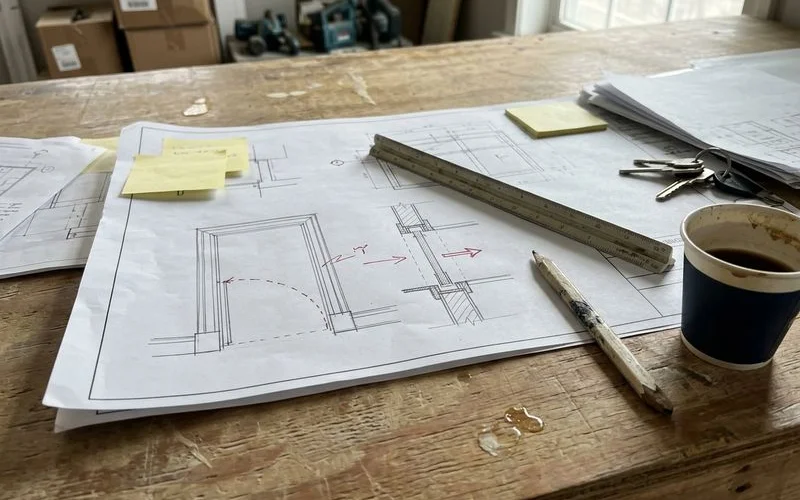

The space question comes first because it often decides everything. A sliding leaf must park somewhere: it needs wall length beside the opening at least equal to the leaf width. A swing leaf needs no side wall at all, but demands a clear quarter-circle arc in front of or behind the door.
The Four-Factor Comparison
| Factor | Automatic Swing | Automatic Sliding |
|---|---|---|
| Space needs | Clear swing arc in front | Side wall to park the leaf |
| Traffic capacity | Moderate, steady flow | High, continuous two-way flow |
| Retrofit to existing door | Often yes — operator on existing leaf | Usually a new system |
| Typical look | Traditional hinged leaf | Wide modern glass entrance |
Traffic. Sliding wins high volume decisively. Twin leaves opening to a wide clear span move crowds that would queue at any swing door. That is why malls, hospitals and transport buildings slide. Swing handles offices, clinics and moderate retail comfortably — our guide on where automatic swing doors are best used maps those settings in detail.
Cost. Door type matters less than size and spec. Both start around RM2,000; leaf size, glass thickness, sensor package and options like backup batteries move the number more than the swing-versus-slide decision does.
Aesthetics. Sliding delivers the wide, frameless-glass storefront look. Swing keeps the rhythm of a hinged entrance, which suits heritage frontages, offices and buildings where the doorway is architectural rather than a hole in a glass wall.
The retrofit shortcut
Already have a sound hinged door? A swing operator can automate it in place — usually the cheapest route to hands-free entry, because the leaf, frame and opening all stay.
How We’d Decide at Your Site
Walk your entrance with three questions. Is there side wall for a sliding leaf to park? If no, swing is likely your answer. Is peak traffic heavy and continuous? If yes and the wall allows, sliding earns its keep. Is there an existing hinged door worth keeping? If yes, price the swing retrofit before anything else.
Edge cases exist — telescopic sliding for narrow walls, low-energy swing operators for accessibility doors, breakout leaves for escape routes — and they are exactly what a site visit sorts out. Our RM50 on-site measurement, fully deductible on order, ends the guesswork with a firm recommendation and price for your specific doorway.
